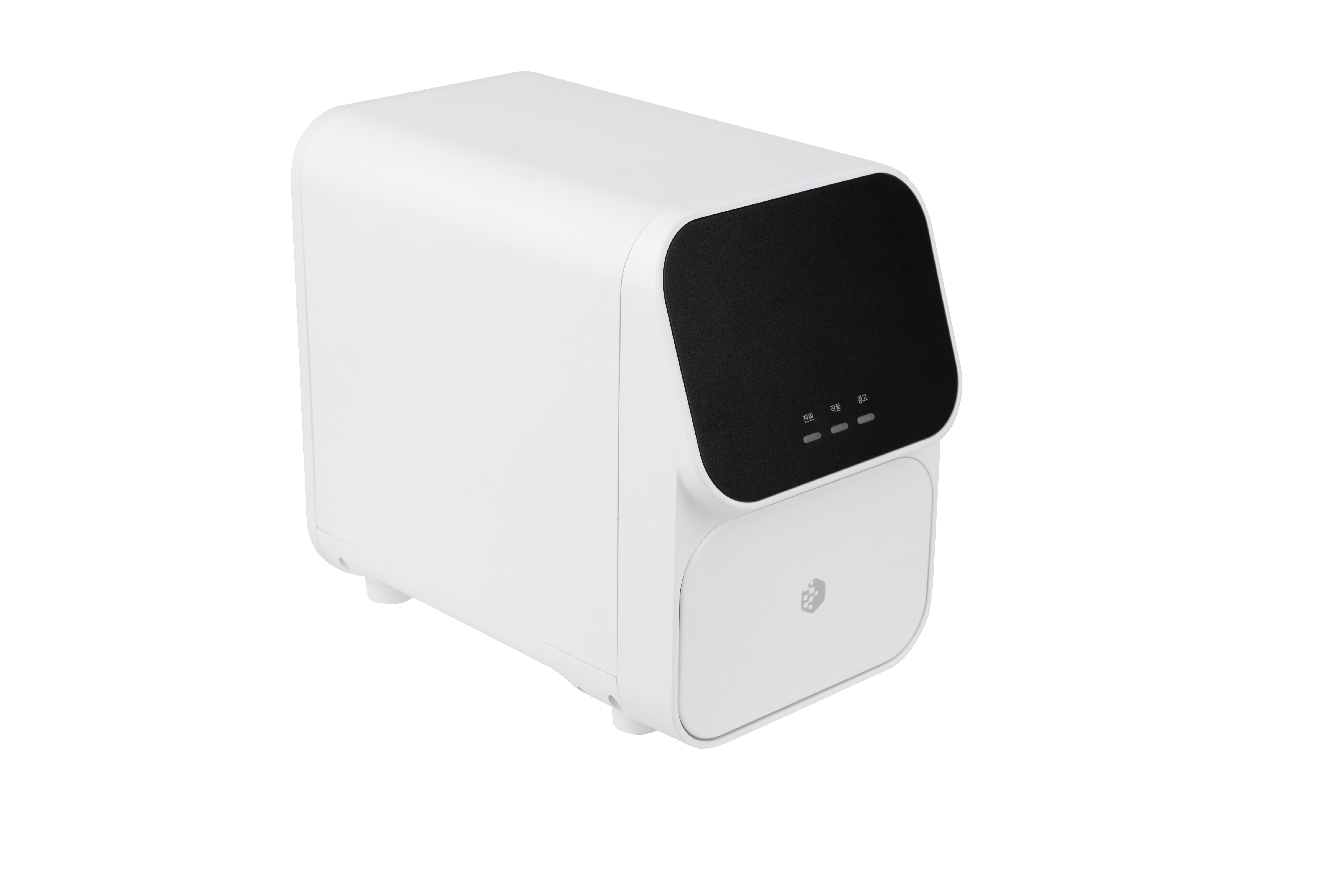

rt DuxCycler is a Real-Time PCR (Polymerase Chain Reaction) system designed for the accurate and efficient amplification of specific DNA targets. Equipped with four independent fluorescence channels, it enables real-time monitoring of the amplification process, ensuring precise quantification and high-throughput capabilities for a wide range of molecular diagnostics and research applications.
Request A QuoteCompact & Light Real Time PCR
User-friendly & Affordable
Simple and Reliable
| Physical | Height | 240mm |
|---|---|---|
| Width | 165mm | |
| Length | 270mm | |
| Weight | 4kg |
| Thermal Performance | Temperature Accuracy | ±0.2°C |
|---|---|---|
| Temperature Uniformity | ±0.2°C | |
| Over Shoot | <0.5°C | |
| Ramp Rates | 2.5°C/sec (Heating) 1.5°C/sec (Cooling) |
|
| Chamber well Temp. | 4~100°C | |
| Lid Temp. | 25~110°C |
| Reaction Tubes | Samples per Instrument | 25well |
|---|---|---|
| Reaction Volume | 0.2mL tube |
| Operation | Heating Method | Peltier |
|---|---|---|
| Cooling Method | Peltier /Air cooling | |
| Input Voltage / Consuming Power | 110~220V/120W | |
| Status Notification(LED) | Blue-Normal operation Red-Failure Green-Waiting |
